JINPAT LPC-36A-0215-01S Rotary Slip Ring with 2 Circuits 0-100 rpm Operating Speed and 0~240V AC/DC Rating for Pipeline Robots

Nguồn gốc Trung Quốc
Hàng hiệu JINPAT
Chứng nhận ISO/CE/RoHS/UL
Số mô hình LPC-36A-0215-01S(ARX-012)
Số lượng đặt hàng tối thiểu 10 CÁI
Giá bán negotiable
chi tiết đóng gói Tiêu chuẩn/theo yêu cầu
Thời gian giao hàng 2 tuần ARO
Khả năng cung cấp 100 đơn vị/Tuần
Thông tin chi tiết sản phẩm
Chu trình 1 mạch*Tín hiệu video 2 mạch*15A Điện áp đánh giá 0~240V AC/DC
Tốc độ quay 0~300 vòng/phút Giá trị dao động điện trở tiếp xúc 35mΩ(50 vòng/phút)
Chiều dài dây (mm) Rotor/Stato:r500±5mm Vật liệu liên hệ vàng sang vàng
Vật liệu nhà ở nhựa kỹ thuật Nhiệt độ làm việc -20 ° C ~+60 ° C.
Độ ẩm làm việc ≤60%RH Cấp độ bảo vệ (IP) IP40
Làm nổi bật

2 Circuits Rotary Slip Ring

,

0-100 rpm Operating Speed Slip Ring

,

0~240V AC/DC Electrical Slip Ring

Mô tả sản phẩm

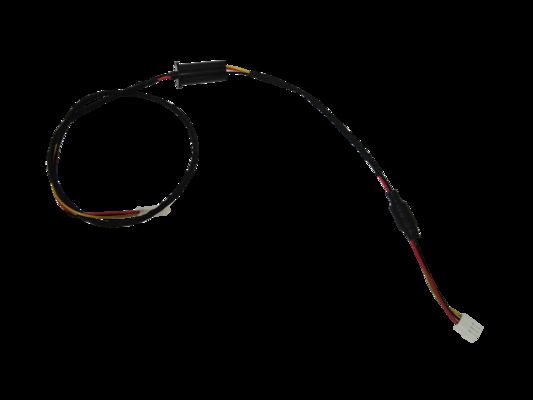

JINPAT LPC-36A-0215-01S(ARX-012) Rotary Slip Ring for Pipeline Robot
Product Overview

Pipeline Robot Slip Ring - LPC-36A-0215-01S (ARX-012)

JINPAT LPC-36A-0215-01S Rotary Slip Ring with 2 Circuits 0-100 rpm Operating Speed and 0~240V AC/DC Rating for Pipeline Robots 0
Technical Specifications
Attribute Value
Circuits 1 circuit*Video signal 2circuits*15A
Rating Voltage 0~240V AC/DC
Rotating Speed 0~300rpm
Contact resistance fluctuation value ≤35mΩ(50rpm)
Wire length(mm) Rotor/Stator: 500±5mm
Contact Material Gold To Gold
Housing Material Engineering Plastics
Working Temperature -20°C~+60°C
Working Humidity ≤60%RH
IP Rating IP40
Key Features & Advantages

This slip ring features reliable electrical connections for stable power and signal transmission. Available in multiple types and specifications, it offers excellent performance and long service life under demanding conditions.

Structural Features
  • Unique electrical connection capabilities, enabling energy and signal transmission
  • Diverse types and specifications
  • Excellent performance
  • Wide range of applications

With its versatile design, this slip ring is ideal for various industrial applications — particularly pipeline inspection robots, where compact size and high reliability are essential.

For more details about this slip ring product, please contact JINPAT. We provide customized solutions to meet your specific requirements.
