30 Circuit 300 RPM Capsule Slip Ring 240VAC 1A for Medical Equipment
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| số mạch | 30 | Xếp hạng hiện tại | 1A |
|---|---|---|---|
| Điện áp | 240VAC | Tốc độ làm việc | 0~300 vòng/phút |
| Nhiệt độ làm việc | -20~+60℃ | Tiếng ồn điện | 鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆 |
| Vật liệu liên hệ | Kim loại quý | Kích thước dây | 30# Đồng mạ bạc UL, Teflon |
| Chiều dài dây dẫn | Rotor:250mm; Cánh quạt: 250mm; Stator:250mm Stator: 250mm | Độ ẩm | ≤60%RH |
| Lớp bảo vệ | IP54 | Phong cách | Viên nang trượt vòng |
| Kiểu | Phụ kiện điện tử | Giao diện liên hệ | địa chỉ liên lạc vàng |
| Màu dây | mã màu | ||
| Làm nổi bật | 30 circuit capsule slip ring,300 RPM medical slip ring,240VAC 1A capsule slip ring |
||
Mô tả sản phẩm
Miniature 300 RPM Slip Ring with 30 Circuits Electrical Contacts
Premium Quality for Medical Equipment and Industrial Applications
Special Offer Available Exclusively on Alibaba

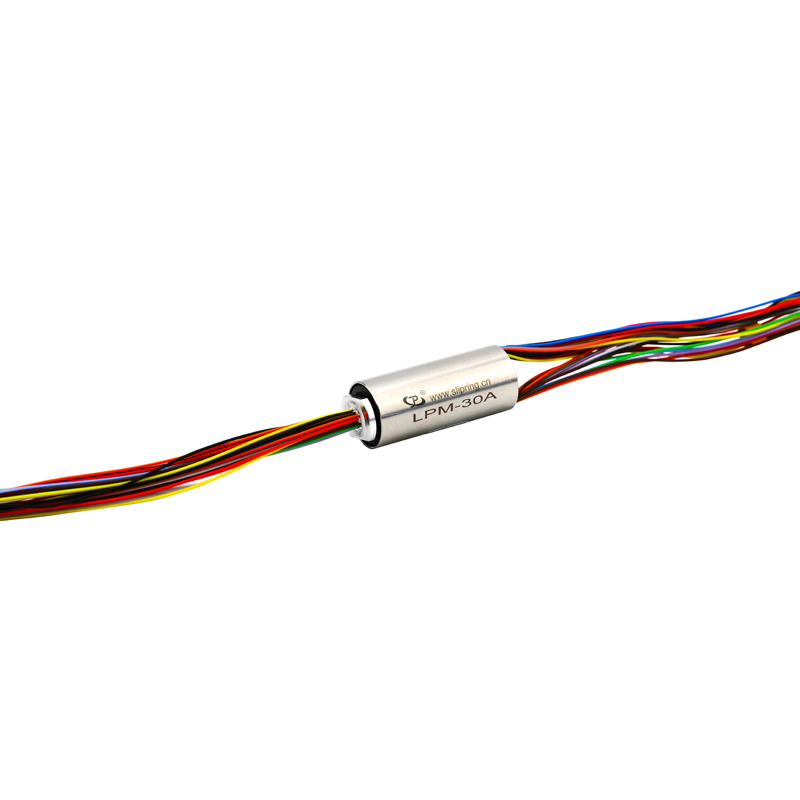

LPM-30A Slip Ring Description
The LPM-30A miniature slip ring with 30 circuits is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard, off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires on both stator and rotor for simplified electrical connections.
LPM-30A Slip Ring Specifications
| Parameter | Value |
|---|---|
| Circuits | 30 |
| Current Rating | 1A |
| Voltage | 240VAC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact Material | Precious metal |
| Wire Size | 30# silver plated copper UL, Teflon |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Primary Applications
- Electric devices and control systems
- Medical facilities and equipment
- Industrial machinery and automation
- LED display and lighting systems
- Process control equipment

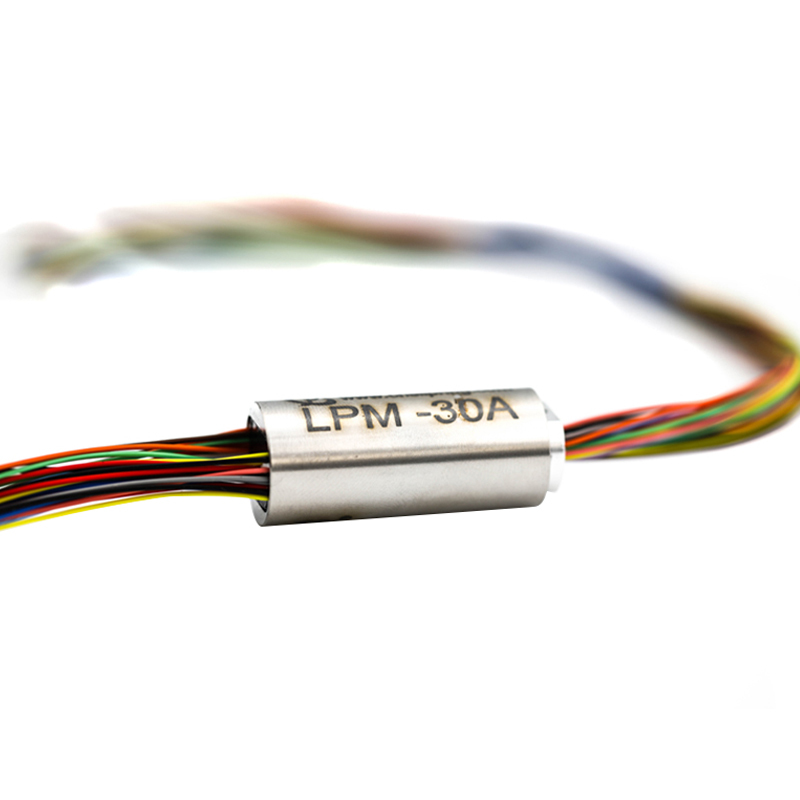

Product Visuals
Manufacturer Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as National High and New Technology enterprise with 69 patents
- Global partnerships with renowned enterprises and worldwide agents
- 10,000+ successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Custom slip ring solutions tailored to specific equipment requirements
- Efficient production and fast delivery capabilities
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
An electromechanical device enabling power and signal transmission between stationary and rotating structures, eliminating damage-prone dangling wires while improving mechanical performance.
Product offerings:
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Ring Solutions
- Large volume production capabilities
How to select a slip ring?
Consider your application's operating parameters including circuit count, voltage/amperage requirements, operating speed, and mounting configuration. Our engineers can assist with selection.
Custom solutions available?
Yes, our engineering team develops tailored solutions to meet specific application requirements. Contact us to discuss your needs.
