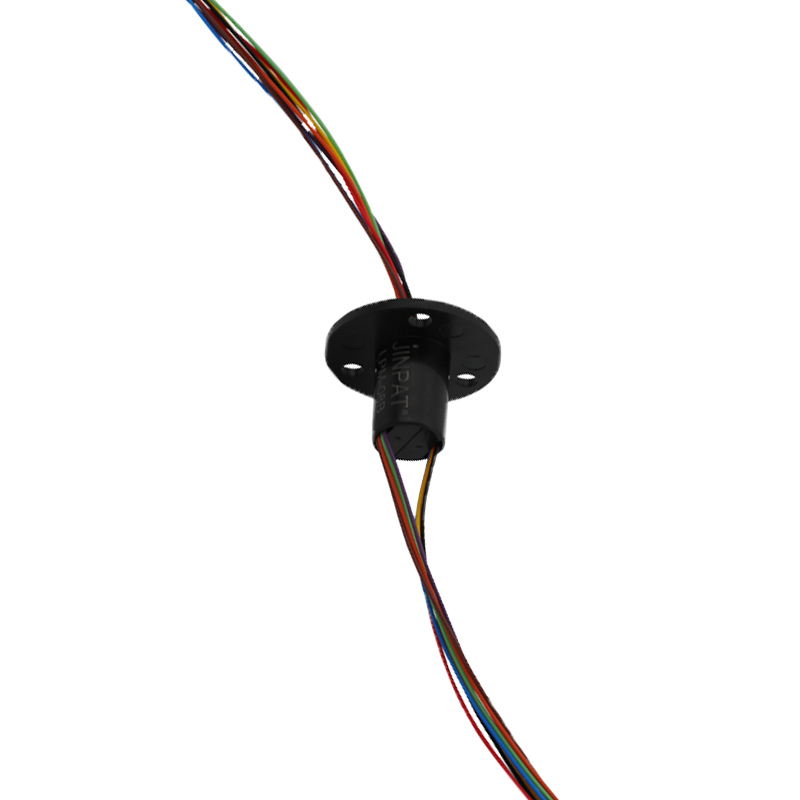

Miniature 8 Circuit Slip Ring Gold Contact 0-300rpm IP40
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Tốc độ quay | 0~300 vòng/phút | Vật liệu liên hệ | vàng sang vàng |
|---|---|---|---|
| Lớp bảo vệ | IP40 | Tổng mạch | 8 mạch |
| Công suất hiện tại | 4 Mạch*4a | Điện áp đánh giá | 110VAC/DC |
| Sức mạnh điện môi | 200vac@50Hz (p) | Điện trở cách nhiệt | 50mΩ@200VDC (P) |
| Biến động điện trở động | 35mΩ | Kích thước dây dẫn | AWG28 # Đồng mạ bạc UL, Teflon |
| Nhiệt độ hoạt động | -20 ° C ~+60 ° C. | Độ ẩm | ≤60%RH |
| Vật liệu nhà ở | nhựa kỹ thuật | Chiều dài dây stato | 200mm |
| Chiều dài dây cánh quạt | 55mm | ||
| Làm nổi bật | Miniature slip ring gold contact,8 circuit slip ring 0-300rpm,Rotary slip ring IP40 |
||
Mô tả sản phẩm
Miniature Capsule Slip Ring 8 Circuits 0~300rpm Low Resistance
Ideal for Smart Robots and Compact Applications
Product Specifications
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Rotating Speed | 0~300rpm |
| Contact Material | Gold To Gold |
| Life span | Customizable |
| Protection grade | IP40 |
Product Description
Premium Quality at Competitive Pricing
Our miniature slip rings provide the perfect solution for power and signal transmission in devices with limited installation space. The JINPAT LPM-08B-0404 model features a durable metal housing with gold-to-gold contacts for stable performance, and a toughened material design for enhanced aesthetics. With a slender profile similar to a pencil, this compact unit contains 8 total circuits (4 circuits rated for 4A current transmission).
Key Features and Advantages
- Military-grade materials and manufacturing processes
- Stable performance for accurate signal transmission
- Long lifespan with high protection (maintenance-free operation)
- Compact, lightweight design with streamlined structure
- Easy installation and smooth operation
- Low torque with minimal electrical noise and resistance
Technical Specifications
Electrical & Electronics
| Circuits | Total: 8 circuits (4 circuits × 4A) |
| Rating Voltage | 110VAC/DC |
| Dielectric Strength | 200VAC@50Hz(P) |
| Insulation Resistance | 50MΩ@200VDC (P) |
| Dynamic Resistance Fluctuation Value | 35MΩ |
| Lead Wire Size | AWG28 # silver plated copper UL, Teflon |
Mechanical
| Rotating Speed | 0~300rpm |
| Contact Material | Gold To Gold |
| Housing Material | Engineering Plastics |
| Wire Length | Stator: 200mm Rotor: 55mm |
Environmental & Others
| Temperature | -20°C~+60°C |
| Humidity | ≤60%RH |
| Protection grade | IP40 |
| Life span | Customizable |
| Note | "P" stands for power, "S" stands for signal |
Product Outline
Company Advantages
JINPAT Electronics provides free custom slip ring solutions to propel your technology forward:
- 12,000+ square meter facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Global partnerships with renowned enterprises and worldwide agents
- 10,000+ successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Custom solutions for diverse equipment requirements
- Fast delivery times
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
An electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. Slip rings enhance mechanical performance, simplify system operation, and eliminate damage-prone dangling wires in movable joints.
What kinds of slip rings do we provide?
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage/amps per circuit, operating speed, and mounting type. For custom solutions or selection assistance, contact our engineering team.
Do you provide custom slip rings?
Yes, our engineers develop perfect solutions for unique requirements. Contact us to discuss your custom slip ring needs.
