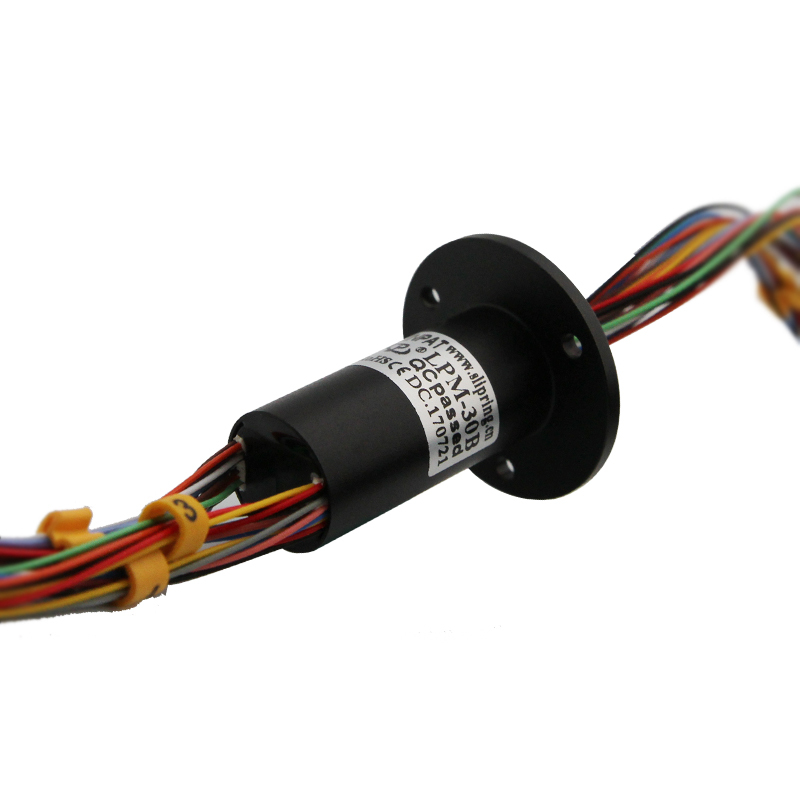

LPM-30B 30 Circuit Slip Ring 1A 240V AC 300 RPM
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| số mạch | 30 | Xếp hạng hiện tại | 1A |
|---|---|---|---|
| Điện áp | điện áp xoay chiều 240V | Tốc độ làm việc | 0~300 vòng/phút |
| Tiếng ồn điện | 鎮ㄨ鎵剧殑璧勬簮宸茶鍒犻櫎銆佸凡鏇村悕鎴栨殏鏃朵笉鍙敤銆 | Vật liệu liên hệ | Kim loại quý |
| Kích thước dây | 30# Đồng mạ bạc UL, Teflon | Chiều dài dây dẫn | Rotor:250mm; Cánh quạt: 250mm; Stator:250mm Stator: 250mm |
| Nhiệt độ làm việc | -20~+60℃ | Độ ẩm | ≤60%RH |
| Lớp bảo vệ | IP54 | Kiểu | Phụ kiện điện tử |
| Giao diện liên hệ | địa chỉ liên lạc vàng | Màu dây | mã màu |
| Xoay vòng | Liên tục | ||
| Làm nổi bật | 30 circuit slip ring 1A 240V,rotary slip ring 300 RPM,LPM-30B slip ring AC |
||
Mô tả sản phẩm
LPM Slip Ring - High Precision with Smooth Running for Video Monitoring Rotating Connector
Product Attributes
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Circuit Number | 30 |
| Current Rating | 1A |
| Voltage | 240V AC |
| Working Speed | 0~300 rpm |
Product Description
Bargain Price Only in Alibaba
Electrical Slip Ring Description
The LPM-30B miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.
The LPM-30B unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
Specification
| Circuits | 30 |
| Current Rating | 1A |
| Voltage | 240VAC |
| Electrical Noise | ≤15mΩ |
| Working Speed | 0~300 RPM |
| Contact | Precious metal |
| Wire Size | 30# silver plated copper UL, Teflon |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP54 |
Electrical Slip Ring Main Applications
- Electric devices
- Medical facility
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment
Outline Drawing
Product Display
Our Advantages
- With a large plant of over 12,000 square meters and more than 500 employees
- The company has been awarded the title of "National High and New Technology" and has obtained 69 patents
- Long-term cooperation with global famous enterprises and agents all over the world
- With Over 10,000 designs with success in civil, military, commercial and industrial applications
- Founded in 1996, with more than 20 years of production and R & D experience
- Providing free custom slip rings solutions, which can be suitable for a variety of equipment
- Fast delivery
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
3. What kinds of slip rings do we offer
- Electrical Slip rings (capsule slip ring, through-hole slip ring, miniature slip ring, etc)
- Signal Slip rings (USB2.0/USB3.0 slip ring, fiber optic rotary joint, high frequency slip ring, etc)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom/modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom/modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
