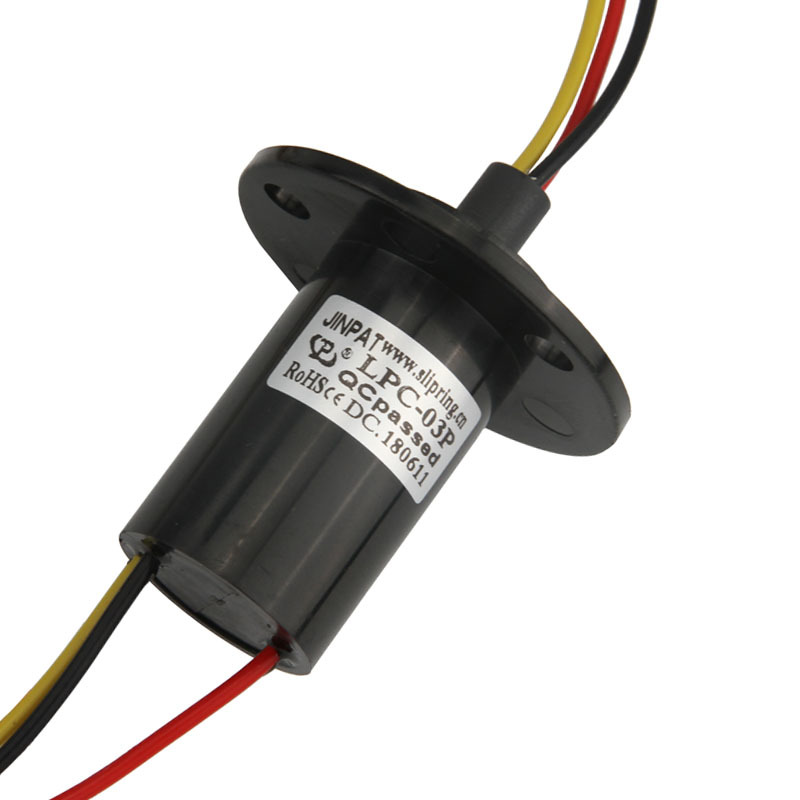

3 Circuit 10A Capsule Slip Ring for Electrical Test Equipment
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Chu trình | 3 | Xếp hạng hiện tại | 10a trở lên |
|---|---|---|---|
| Điện áp | 240VAC | Nhiệt độ làm việc | -20~+60℃ |
| Vật liệu liên hệ | vàng sang vàng | Đặc điểm kỹ thuật của dây | AWG17#, Teflon mạ bạc, UL |
| Chiều dài dây dẫn | Rotor:250mm; Cánh quạt: 250mm; Stator:250mm Stator: 250mm | Điện trở cách nhiệt | 100MΩ@500VDC |
| Sức mạnh điện môi | 500V@50Hz giữa các mạch | Tiếng ồn điện | ≤35mΩ (hoạt động ở 50 vòng / phút) |
| Lớp bảo vệ | IP54 | Tốc độ làm việc | 0~300 vòng/phút |
| Đường kính ngoài | 22mm ~ 54mm | Tiếp xúc với điện trở | Rất thấp |
| Khả năng tương thích tín hiệu | Ethernet, USB, RS, LVD, Can Bus, Fire Wire, SDI, HDMI | ||
| Làm nổi bật | 10A capsule slip ring,3 circuit slip ring,electrical test slip ring |
||
Mô tả sản phẩm
Capsule Slip Ring 3 Circuit 10A
High-performance slip ring with very low contact resistance, ideal for electrical test equipment and rotary table applications.
Product Attributes
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Features | Very low contact resistance |
| Typical Application | Rotary table |
| Optional | Rotating speed |
Product Description
Standard middle-sized Capsule Slip Ring integrates up to 125 circuits with optional outer diameters from 22mm to 54mm. Features military-standard surface processing for high precision and compact design with gold-to-gold contacts for low resistance and extended service life. Compatible with various signals including Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI, and HDMI.
LPC-03P Slip Ring Technical Specifications
| Parameter | Value |
|---|---|
| Protection Grade | IP54 |
| Working Speed | 0-300 RPM |
| Circuits | 3 |
| Current Rating | 10A or higher |
| Voltage | 240VAC |
| Working Temperature | -20°C to +60°C |
| Contact Material | Gold to gold |
| Wire Specification | AWG17#, silver plated Teflon, UL |
| Lead Wire Length | Rotor: 250mm; Stator: 250mm |
| Insulation | 100MΩ@500VDC |
| Dielectric Strength | 500V@50Hz between circuits |
| Electrical Noise | ≤35mΩ (operating at 50rpm) |
Applications
- Electric devices
- Motor equipment
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment
- Monitoring systems
- Electrical testing equipment
- Military rotary tables
- Robotics
- Rotating platforms
- Display and demonstration equipment
- Instruments and meters
Key Features
- Extended service life
- Exceptionally low contact resistance
- Compatible with data bus protocols
- Smooth operation with high stability
- Low torque requirements
- Supports multiple data signal types
- Compact structural design
Product Images
Company Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as "National High and New Technology" enterprise
- Holder of 69 patents
- Long-term partnerships with global industry leaders
- Over 10,000 successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of R&D experience
- Custom slip ring solutions available
- Fast delivery times
Company Information
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating structures. It enhances mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires in movable joints.
What kinds of slip rings do we offer?
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and current requirements, operating speed, and mounting type. For custom solutions or assistance, please contact our engineering team.
Do you offer custom slip rings?
Yes, our engineering team develops tailored solutions for specific requirements. Contact us to discuss your application needs.
