JINPAT 56 Circuit Electrical Slip Ring 240V 2A 0-300rpm
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Chu trình | 56 CKT | Tốc độ quay | 0-300rpm hoặc cao hơn |
|---|---|---|---|
| Nhiệt độ hoạt động | -20 ℃ ~+60 ℃ (công nghiệp) | Hoạt động độ ẩm | 60%RH hoặc cao hơn |
| Điện áp | 240V VC/DC | Công suất hiện tại | 2A mỗi mạch |
| Vật liệu liên hệ | Kim loại quý | Vật liệu nhà ở | Hợp kim nhôm |
| Sức mạnh điện môi | ≥500VAC@50Hz (p), ≥100Vac@50Hz (s) | Mô -men xoắn | ≤ 0,88 g.m |
| Điện trở cách nhiệt | ≥100mΩ@500VDC (p), ≥10mΩ@100VDC (s) | Loại dây | AWG30# Teflon hoặc những người khác |
| Chiều dài dây | 250mm (tùy chọn) | Biến động điện trở động | ≤35mΩ |
| Tuổi thọ | Có thể tùy chỉnh | ||
| Làm nổi bật | 56 circuit electrical slip ring,240V 2A rotary slip ring,300rpm industrial slip ring |
||
Mô tả sản phẩm
JINPAT Electrical Slip Ring - 240V 56 Circuits 2A
Product Specifications
| Attribute | Value |
|---|---|
| Type | Accessories |
| Circuits | 56 CKT |
| Rotating Speed | 0-300rpm or higher |
| Temperature | Industrial: -20℃~+60℃ |
| Humidity | 60%RH or higher |
Product Description
Special Offer Available Only on Alibaba
The LPM micro-capsule slip ring integrates 30 or more circuits with optional outer diameters ranging from 12.5mm to 16mm. This series features advanced military-grade surface treatment technology, offering high precision, compact design, and easy assembly. The gold-to-gold contact ensures low resistance and extended service life.
Key Features
- Compact size for space-constrained applications
- Gold-to-gold contact for superior conductivity
- Low resistance for efficient power transmission
- Extended service life for reduced maintenance
- Multifarious signal integration capability
Customization Options
- Rotating speed adjustment
- Life span specifications
- Protection grade selection
- Number of circuits configuration
- Current capacity variations
- Size modifications
- Housing material options
- Mass production capability
Primary Applications
- Robotic vacuum systems
- Rocker camera mechanisms
- Petroleum and mining platforms
- Testing equipment
- Electrical testing devices
- Medical instruments
Technical Parameters
| Electrical & Electronics | Mechanical | Environmental | |
|---|---|---|---|
| Circuits | 56 CKT | Rotating Speed | 0-300rpm or higher |
| Current | 56×2A | Temperature | Industrial: -20℃~+60℃ Military: -50℃~+80℃ |
| Voltage | 240V VC/DC | Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy | Humidity | 60%RH or higher |
| Dielectric Strength | ≥500VAC@50Hz(P) ≥100VAC@50Hz(S) |
Protection Grade | / |
| Insulation Resistance | ≥100MΩ@500VDC(P) ≥10MΩ@100VDC(S) |
Torque | ≤0.88 g.m (for reference) |
| Dynamic Resistance Fluctuation | ≤35mΩ | Wire Type | AWG30# Teflon or others |
| Wire Length | 250mm (optional) | ||
| Life Span | Customizable | ||
Model Comparison

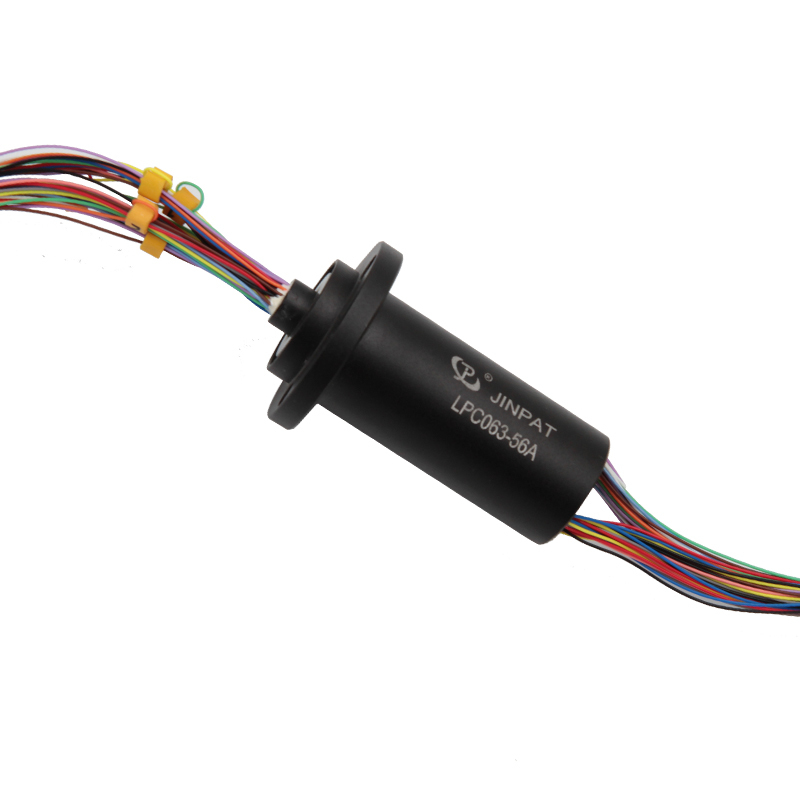

The LPC063-56A compact slip ring shares the same number of channels with LPC-56A, differing primarily in size and certain properties. The LPC063-56A measures only 63mm in length, with a rated voltage of 110V (compared to LPC-56A's 220V) and a reduced current rating of 1.5A per channel. For high-capacity transmission requirements, JINPAT offers comprehensive solutions.
Company Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Global partnerships with renowned enterprises and worldwide agents
- 10,000+ successful designs across civil, military, commercial, and industrial applications
- Established in 1996 with over 20 years of R&D and production experience
- Free custom slip ring solutions tailored to specific equipment requirements
- Fast delivery service
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high-quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures, improving mechanical performance while eliminating damage-prone dangling wires.
What kinds of slip rings do we provide?
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series production
How do I choose a slip ring?
Selection requires details about your application's operating parameters including circuit count, voltage/amperage requirements, operating speed, and mounting type. For custom solutions, our engineering team provides expert guidance.
Do you provide custom slip rings?
Yes, our engineers develop tailored solutions for unique requirements. Contact us to begin the customization process.
