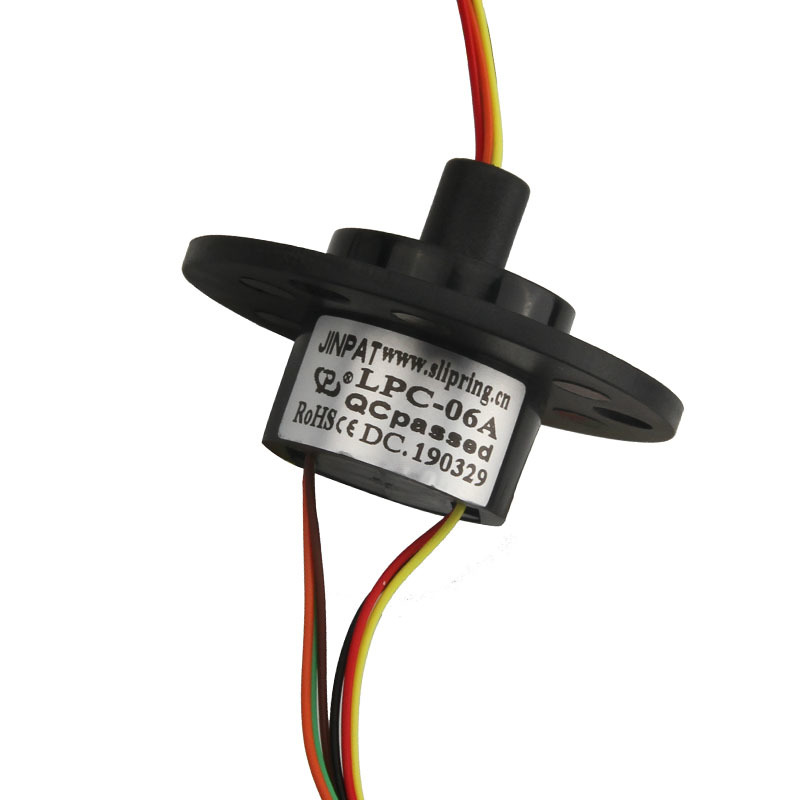

6 Channel Capsule Slip Ring 2A Current for Medical Equipment
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Xếp hạng hiện tại | 2A trên mỗi mạch hoặc cao hơn | Tốc độ làm việc | 0-300 vòng/phút |
|---|---|---|---|
| Tiếng ồn điện | Min1moΩ | Mô -men xoắn | .80,88gm |
| Chu trình | 6 | Điện áp | 240VAC |
| Sức mạnh điện môi | ≥500V@50Hz giữa các mạch | Điện trở cách nhiệt | 100MΩ@500VDC |
| Lớp bảo vệ | IP40 trở lên | Chiều dài dây | 250mm (tùy chọn) |
| Kích thước dây | 28# Đồng mạ bạc UL, Teflon | Chiều dài dây dẫn | Rotor:250mm; Cánh quạt: 250mm; Stator:250mm Stator: 250mm |
| Nhiệt độ làm việc | -20~+60℃ | Độ ẩm | 60%RH hoặc cao hơn |
| Đường kính ngoài | 22mm ~ 54mm | ||
| Làm nổi bật | 6 channel slip ring for medical equipment,2A current slip ring,rotary slip ring with warranty |
||
Mô tả sản phẩm
Capsule Slip Ring - 2A Current & 6 Channel High Life for Biochemical Analyzer
Product Attributes
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Electrical Noise | Min 1mΩ |
| Torque | ≤0.88g.m |
| Current Rating | 2A per circuit or higher |
| Working Speed | 0-300rpm |
Product Description
Bargain Price Only in Alibaba
Standard middle-sized Capsule Slip Ring/Flat Slip Ring is capable of integrating over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, offering high precision, compact design, and easy assembly. Gold-to-gold contact ensures low resistance and extended service life. Capable of integrating various signals including Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI.
Specifications
| Circuits | 6 |
| Current Rating | 2A |
| Voltage | 240VAC |
| Dielectric Strength | ≥500V@50Hz between circuits |
| Insulation | 100MΩ@500VDC |
| Protection | IP40 or higher |
| Working Speed | 0~300 RPM |
| Wire Length | 250mm (Optional) |
| Wire Size | 28# silver plated copper UL, Teflon |
| Lead Wire Length | Rotor:250mm; Stator:250mm |
| Working Temperature | -20~+60℃ |
| Humidity | 60%RH or higher |
| Protection Grade | IP40 |
Industrial Applications
- Electric devices
- Motor equipment
- Industrial machinery
- LED industry
- Medical equipment
- Process control equipment
- Monitoring systems
- Electrical testing equipment
- Military rotary table
- Robotics
- Rotating platform
- Displaying and demonstrating equipment
- Instruments and meters
Key Features
- High durability and long service life
- Very low contact resistance
- Compatible with data bus protocols
- Smooth operation and high stability
- Low torque operation
- Supports various types of data signals
- Compact and space-saving structure
Product Visuals
Company Advantages
- 12,000 square meter facility with 500+ employees
- National High and New Technology award recipient with 69 patents
- Global partnerships with renowned enterprises
- Over 10,000 successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for various equipment
- Fast delivery service
Frequently Asked Questions
What do we do?
We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires in movable joints.
What kinds of slip rings do we offer?
- Electrical Slip Rings (capsule, through-hole, miniature)
- Signal Slip Rings (USB, fiber optic, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance in selection or custom solutions.
Do you offer custom slip rings?
Yes, our engineers will develop perfect solutions for your specific needs. Contact us to discuss custom requirements.
