Marine Winch Slip Ring 6MW 700A IP56 for Offshore Operations
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Name | Marine Winch Slip Rings | Insulation Resistance | Power ring: ≥ 100M Ω @ 2500VDC Signal loop: ≥ 100M Ω @ 250VDC |
|---|---|---|---|
| Voltage | 6600VAC/220V | Protection level | IP56 |
| Working humidity | ≤95%RH | Rotation method | The electric brush remains stationary while the ring rotates |
| Speed | 0~30rpm | ||
| Làm nổi bật | Marine winch slip ring 700A,Offshore slip ring IP56,Rotary slip ring 6MW |
||
Mô tả sản phẩm

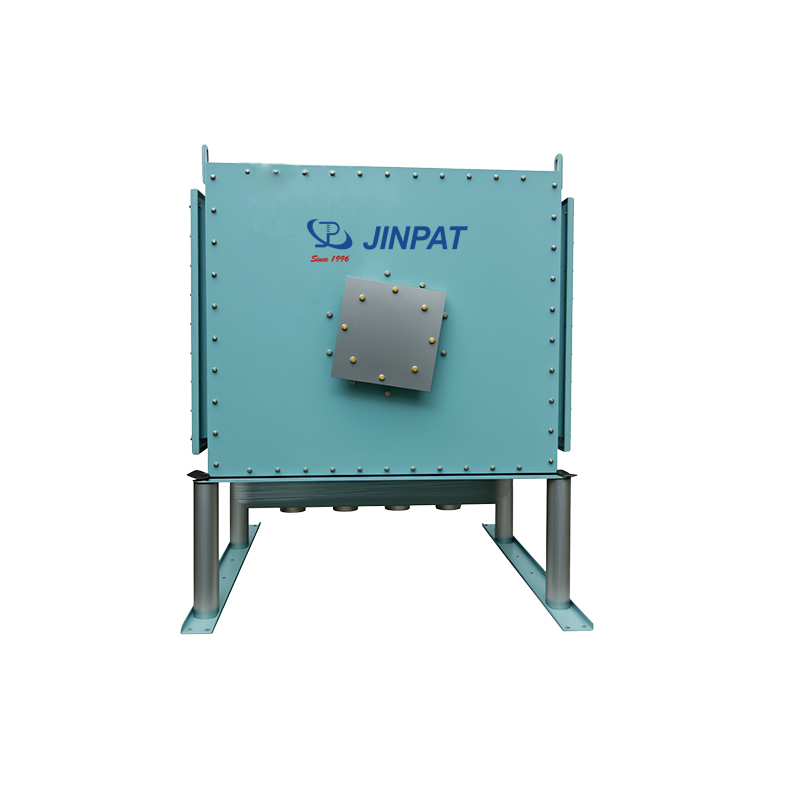

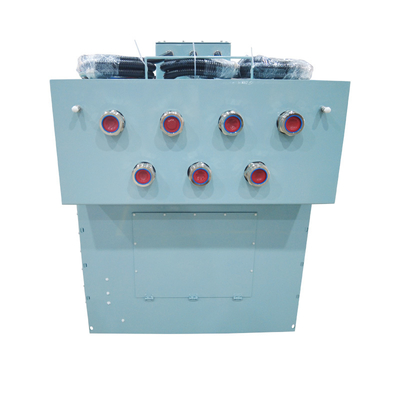

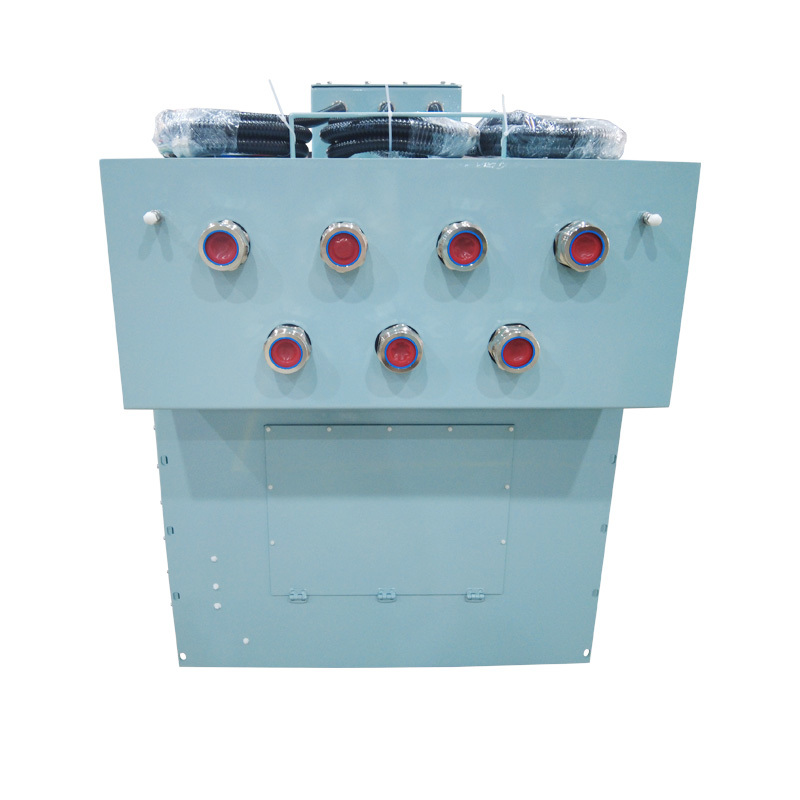

Marine Winch Slip Ring 6MW 700A IP56 for Offshore
Product Overview
JINPAT offers premium marine winch slip rings with two power options: a high-capacity 6MW model for demanding offshore operations and a 50kW model for standard requirements. Both ensure stable electrical energy and signal transmission for safe, efficient vessel operations.
Key Specifications
| Attribute | Value |
|---|---|
| Name | Marine Winch Slip Rings |
| Insulation Resistance | Power ring: ≥ 100M Ω @ 2500VDC Signal loop: ≥ 100M Ω @ 250VDC |
| Voltage | 6600VAC/220V |
| Protection level | IP56 |
| Working humidity | ≤95%RH |
| Rotation method | The electric brush remains stationary while the ring rotates |
| Speed | 0~30rpm |
Product Features
- High voltage capacity (withstand voltage: 6600VAC@50Hz)
- High current handling (short-circuit current: 35kA)
- Exceptional stability (temperature rise fluctuation less than 1°C)
- Robust construction for harsh marine environments
- Continuous rotation without power or data interruption
Technical Specifications
Electrical & Electronics
| Voltage | 6600VAC/220V |
| Electric current | 700A * 3 channels (power) PE * 1 channel (power) 15A * 6 channels (signal) |
| Dielectric strength | 30000VAC@50Hz(P) 500VAC@50Hz(s) |
| Insulation resistance | Power Ring: 100M Ω @ 2500VDC Signal loop: 100M Ω @ 250VDC |
Mechanical
| Speed | 0~30rpm |
| Rotation method | The electric brush remains stationary while the ring rotates |
| Installation method | / |
| Wire length | Based on the external drawing |
Environmental
| Protection level | IP56 |
| Working temperature | -20°C~+45°C |
| Working humidity | ≤95%RH |
LPA000-0250-FO04 - 15T Cable Towing Winch
This marine winch slip ring is engineered for offshore operations with 50KW power capacity. Features excellent corrosion resistance and anti-interference capability for stable performance in harsh marine environments.
For more details about this slip ring product, please contact JINPAT. We will provide you with a satisfactory custom solution!
