6 Circuit 5A Hollow Slip Ring 50mm Bore for Industrial Machinery
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Circuits | 1-24 circuits | Voltage Rating | 380VAC/DC or higher |
|---|---|---|---|
| Operating Speed | 0-300rpm | Current Rating | 5A per circuit |
| Contact Material | Precious metal | Through-bore Size | 50mm |
| Outside Diameter | 119mm | Working Temperature | -10~ +50 |
| Working Humidity | 60%RH or higher | Dielectric Strength | ≥200V@50Hz between each circuit |
| Insulation Resistance | 50MΩ@ 500VDC | Electrical Noise | 30mΩ Min |
| Lead Wire Length | 300mm (11.811inch) | Housing Material | Aluminum alloy |
| Torque | ≤9.25 g*m | ||
| Làm nổi bật | 6 circuit hollow slip ring,5A slip ring for industrial machinery,50mm bore through hole slip ring |
||
Mô tả sản phẩm
Slip Ring with Hollow, 6 Circuit 5A Hole Size 50mm
Ideal for wind generator applications and other rotating equipment requiring reliable power transmission.
Key Specifications
| Type | Electronic Accessories |
| Circuits | 1-24 circuits |
| Voltage Rating | 380VAC/DC or higher |
| Operating Speed | 0-300rpm |
| Current Rating | 5A per circuit |
| Contact Material | Precious metal |
Product Features
- 50mm unobstructed through-bore for routing space
- Fiber brush technology for maintenance-free operation
- Compact 119mm outside diameter
- Modular design with flexible circuit configurations
- Steel bearings and machined shaft for harsh environments
- Standard collar mounting with optional flange mounting
- Sealed unit with IP50 protection
- Continuous 360° rotation capability
Technical Specifications
Electrical
| Voltage Rating | 380VAC/DC or higher |
| Current Rating | 2A/5A/10A/15A per circuit |
| Dielectric Strength | ≥200V@50Hz between each circuit |
| Insulation Resistance | 50MΩ@ 500VDC |
| Electrical Noise | 30mΩ Min |
Mechanical
| Contact Material | Precious metal |
| Lead Wire Length | Standard 300mm (11.811inch) |
| Housing Material | Aluminum alloy |
| Torque | ≤9.25 g*m (for reference) |
| Protection | IP50 |
Key Advantages
• Transfers control and data signals reliably
• Fiber brush technology eliminates need for lubrication
• Modular design allows for custom configurations
• Durable construction for industrial environments
Typical Applications
- Packaging/wrapping machinery
- Semiconductor handling systems
- Industrial machinery
- Exhibit display machinery
- Medical equipment
- Rotary index tables
- Process control equipment
- Emergency lighting and robotics
- Palletizing machines
- Heavy equipment turrets
- Cable reels

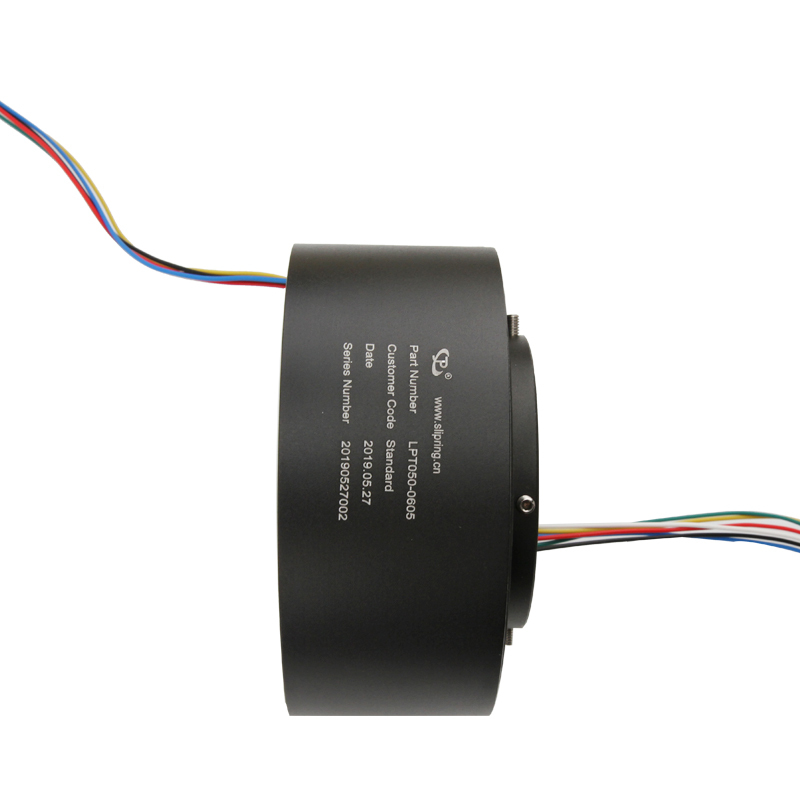

Product Images
Company Advantages
- 12,000 square meter production facility with 500+ employees
- National High and New Technology award recipient with 69 patents
- 20+ years of experience since 1996
- 10,000+ successful designs for various applications
- Global partnerships with major enterprises
- Free custom slip ring solutions
- Fast delivery times
