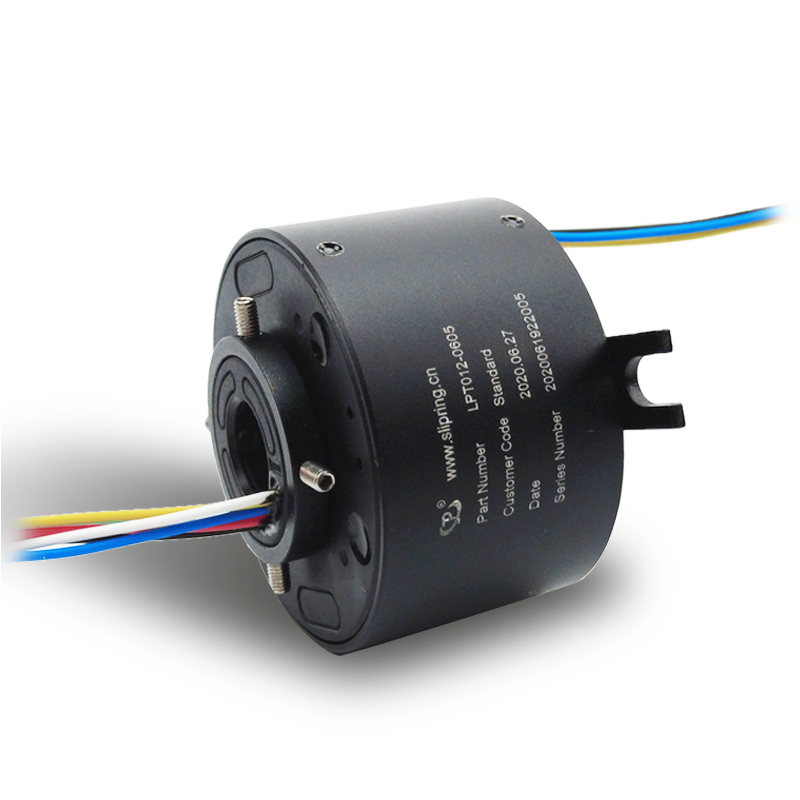

12.7mm Through Hole Slip Ring 6 Circuit 5A Precious Metal Contacts
Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Ứng dụng trò chuyện: sales10@aixton.com
Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.
xThông tin chi tiết sản phẩm
| Bore Size | 12.7mm | Circuits | 6 circuit |
|---|---|---|---|
| Current Rating | 5A per circuit | Operating Speed | 0-400rpm |
| Working Humidity | 60%RH or higher | Contact Material | Precious metal |
| Voltage Rating | 380VAC/DC or higher | Protection Level | IP44 or higher |
| Dielectric Strength | ≥800V@50Hz between each circuit | Insulation Resistance | 50MΩ@ 500VDC |
| Electrical Noise | 30mΩ Min | Lead Wire Length | 300mm (11.811inch) |
| Housing Material | Aluminum alloy | Torque | ≤9.25 g*m |
| Working Temperature | -20℃~ +60℃ | ||
| Làm nổi bật | 12.7mm through hole slip ring,6 circuit slip ring with precious metal contacts,5A through hole slip ring |
||
Mô tả sản phẩm

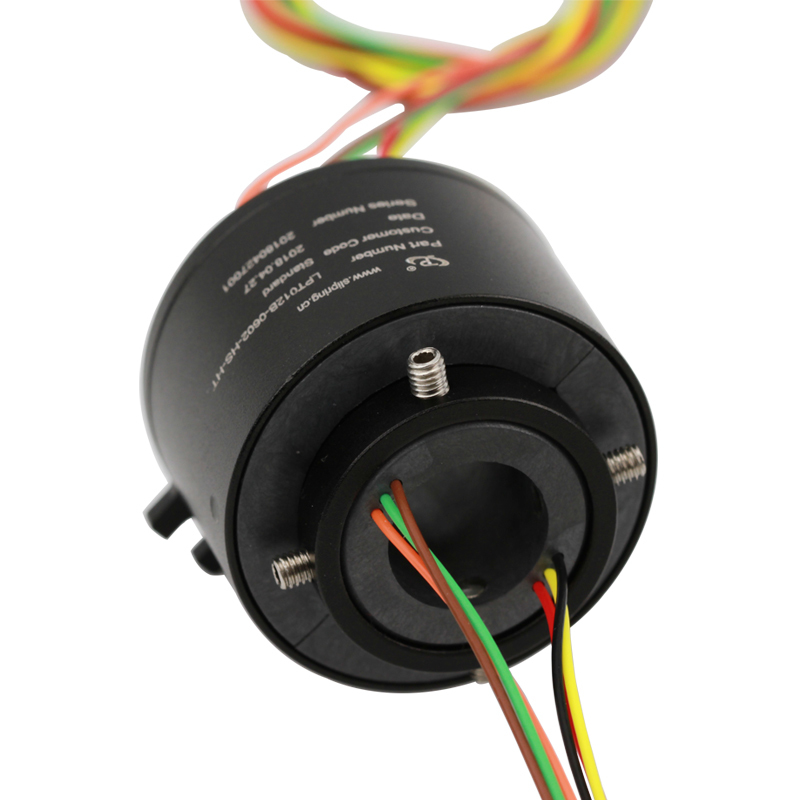

Small Through Hole Slip Ring - 12.7mm Bore Size, 6 Wire, 5A Precious Metal Contacts
Product Attributes
| Attribute | Value |
|---|---|
| Type | Electronic Accessories |
| Circuits | 6 circuit 2A per ring (1-24 circuits custom optional) |
| Operating Speed | 0-400rpm |
| Working Humidity | 60%RH or higher |
| Contact Material | Precious metal |
| Voltage Rating | 380VAC/DC or higher |
| Protection | IP44 or higher |
Product Description
The LPT series through-bore slip rings feature a center hole that can accommodate drive shafts or gas-liquid passages, with optional integration of high frequency, fiber, encoder, waveguide, gas and liquid joints. Advanced fiber brush technology ensures reliable contact with minimal friction.
Bargain Price Only in Alibaba
Key Features
- Transmits both analog and digital signals
- Mixed transmission of power and signals including:
- Ethernet (10Mbps/100Mbps/1000Mbps)
- Industrial Ethernet (EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP)
- HD video (SDI, LVDS)
- Serial communication (RS232, RS485, RS422)
- USB2.0
- Industrial Fieldbus (CANBus, ProfiBus, InterBus, CC-Link, DeviceNet)
- Sensor signals (thermal resistance, thermocouple, strain gauge)
- Long service life with maintenance-free operation
- Easy installation
Applications
- Industrial automation equipment
- Medical equipment
- Wind power equipment
- Test equipment
- Exhibition and display equipment
- Robotics
- Turntable equipment
- Amusement equipment
- High-speed railway equipment
- Packaging machinery
- Ship offshore equipment
- Construction machinery
Technical Specifications
| Circuits | 12 circuits |
| Operating Speed | 0-300rpm |
| Working Temperature | -20℃ to +60℃ |
| Working Humidity | 60%RH or higher |
| Electrical Specifications | |
| Voltage Rating | 380VAC/DC or higher |
| Current Rating | 5A per circuit |
| Dielectric Strength | ≥800V@50Hz between each circuit |
| Insulation Resistance | 50MΩ@ 500VDC |
| Electrical Noise | 30mΩ Min |
| Mechanical Specifications | |
| Contact Material | Precious metal |
| Lead Wire Length | Standard 300mm (11.811inch) |
| Housing Material | Aluminum alloy |
| Torque | ≤9.25 g*m (for reference) |
| Protection | IP50 |
Product Outline Drawing
Our Advantages
- 12,000 square meter production facility with 500+ employees
- Recognized as "National High and New Technology" enterprise with 69 patents
- Long-term partnerships with global enterprises and worldwide agents
- Over 10,000 successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for various equipment requirements
- Fast delivery times
Typical Applications
Company Information
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It enhances mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires in rotating joints.
What kinds of slip rings do we provide?
- Electrical Slip Rings (capsule, through-hole, miniature)
- Signal Slip Rings (USB2.0/USB3.0, fiber optic rotary joints, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and current per circuit, operating speed, and mounting type. Contact our engineers for assistance with custom solutions.
Do you provide custom slip rings?
Yes, our engineering team develops tailored solutions for specific requirements. Contact us to discuss your application needs.
